Name: 1000W High Output Profile Moving Head Light | BSWF | High CRI
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

1000W High Output Profile Moving Head Light | BSWF | High CRI

LED 1000W 4in1 Profile Moving Head Light is equipped with a 1000W LED engine,supporting dual color rendering mode switching: in standard mode,the color rendering index Ra＞70, and in high color rendering mode, Ra ＞90. Through a 138mm output lens, it can deliver a luminous flux of up to 50,000 lumens.

Brand model :
QR-LF1200
Input voltage :
AC100V-240V, 50/60Hz
Light source :
1000W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Color wheel :
4+1/CMY/CTO
Product size :
42.6*28.9*75.1cm
Net weight :
34.5kg

Function Description

The LED 1000W 4in1 Profile Moving Head Light is equipped with a 1000W high-output LED engine, supporting dual color rendering mode switching: in standard mode, the color rendering index Ra＞70, and in high color rendering mode, Ra ＞90. Through a 138mm output lens, it can deliver a luminous flux of up to 50,000 lumens, providing uniform, natural, and long-throw beams, showcasing outstanding lighting performance for professional stage applications. It features an independent dynamic effect wheel and incorporates a plug-in CMY infinite mixing color system and plug-in linear CTO color temperature correction structure, enabling smooth and delicate color and temperature transitions, while greatly facilitating maintenance, quick replacements, and on-site deployment.

With 16-bit precise dimming and support for various dimming modes, coupled with a high refresh rate design, it ensures flicker-free performance under high-definition cameras. The built-in intelligent fan temperature control system allows for switching between multiple fan operation modes, ensuring efficient and stable heat dissipation. Highly integrated into a compact and lightweight body, net weighing only 33kg, this professional-grade moving head combines longevity, fast heat dissipation, versatile effects, and convenient control in one unit. Ideal for theaters, concert halls, broadcast studios, and large-scale events, it delivers reliable, high-performance stage lighting with superior color rendering and dynamic effects.

Technical parameters

Light Source System

Light source specification: 1000W LED module
Light source color temperature: 7000K
Light source life: 20000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5-50 degrees
Lens diameter：138mm
Total lumen output of fixture: 50000 lumens
Lux：28000Lux@10m

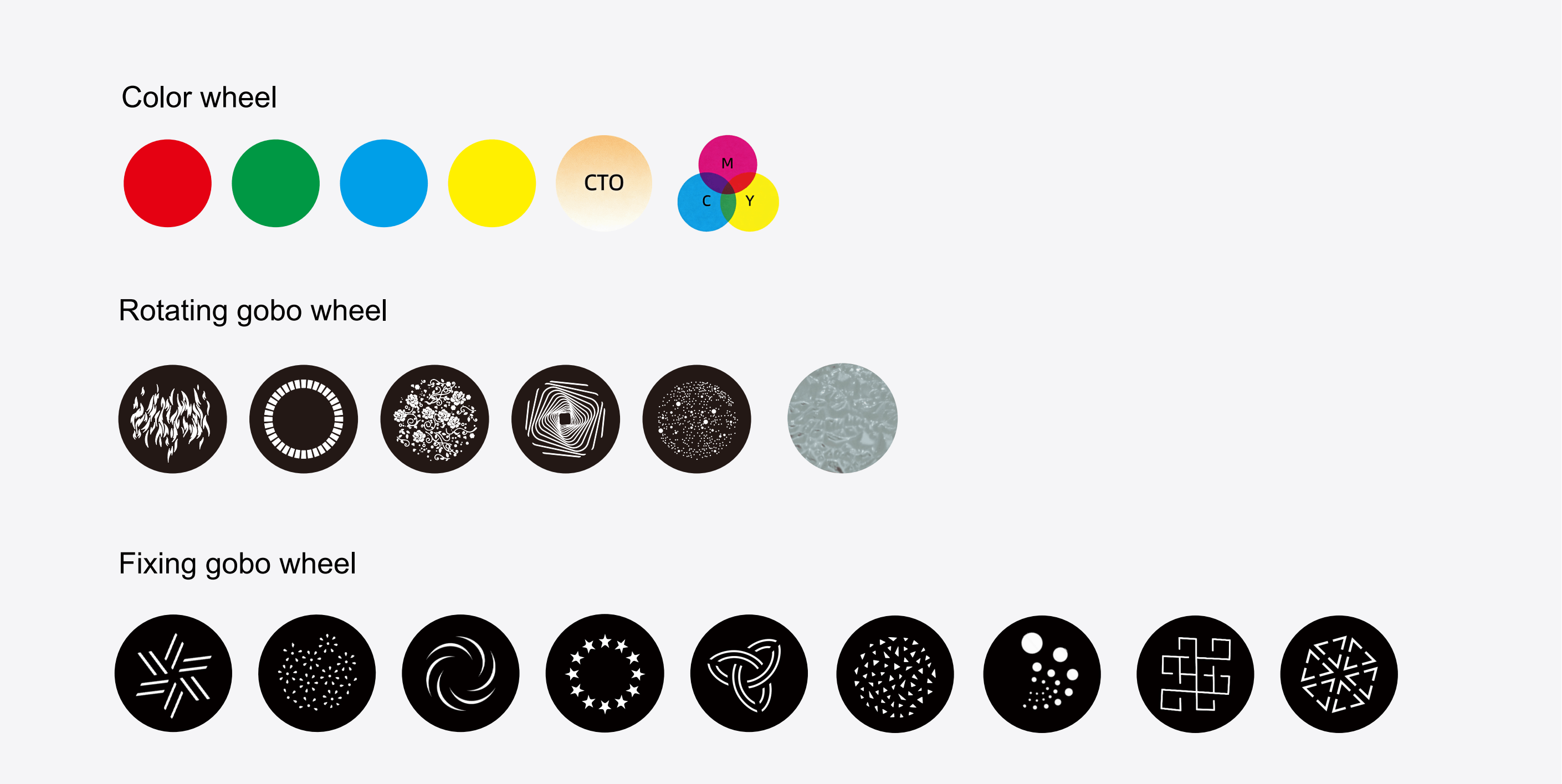

Color System

Independent CMY color mixing system
Linear CTO color temperature correction (7300-2600K)
1 Independent Color Wheel with 4 Colors, featuring step and linear color-changing modes, and an adjustable-speed rainbow water effect

Gobo system

Rotating gobo wheel: 6 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 30mm±0.2mm, inner diameter 25mm, thickness 1.1mm
Fixed gobo wheel: 9 fixed gobos+white, which can change speed and shake

Cutting System

4 independent cutting blades, each can be controlled individually to produce geometric shapes of different sizes and forms, and capable of 90°rotation

Effect

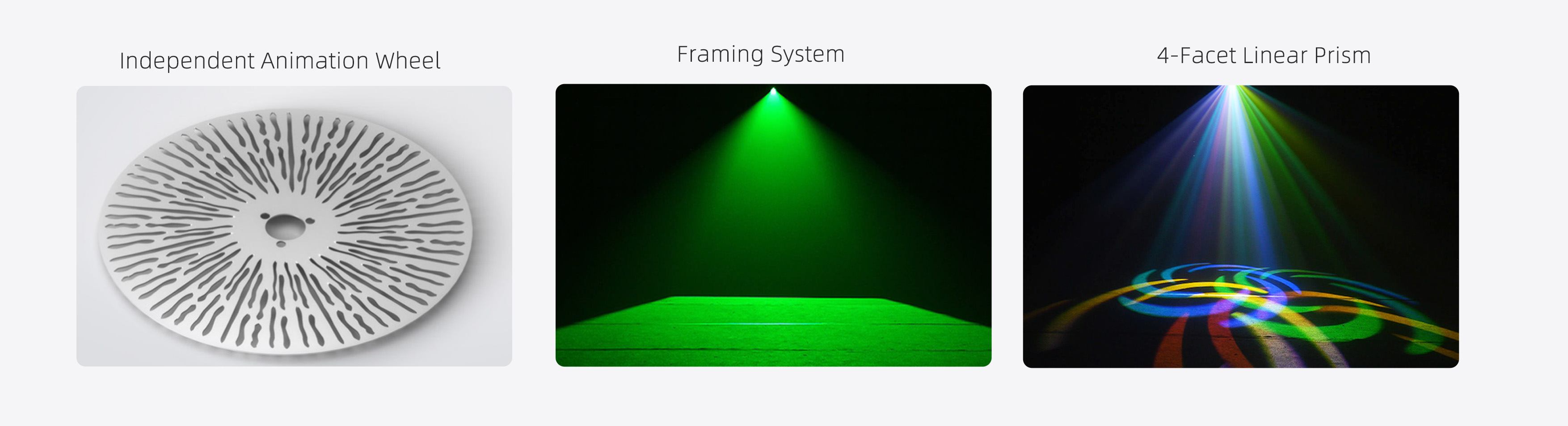

Independent effect disc
Prism: 4 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% linear frost, natural and soft light spot
Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 1100W
Channel mode: 39CH
Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Control protocol: standard DMX512/RDM protocol
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
Working environment: -20 ° C to 40 ° C
Protection level: IP20

Size & Weight

Product size: 42.6*28.9*75.1cm (L*W*H)
Net weight: 34.5kg

1000W High Output Profile Moving Head Light | BSWF | High CRI

Function Description

Light Source System

Optical System

Color System

Gobo system

Cutting System

Effect

Pan &Tilt

Electrical & Interface

Control & Programming

Fixture Structure

Size & Weight

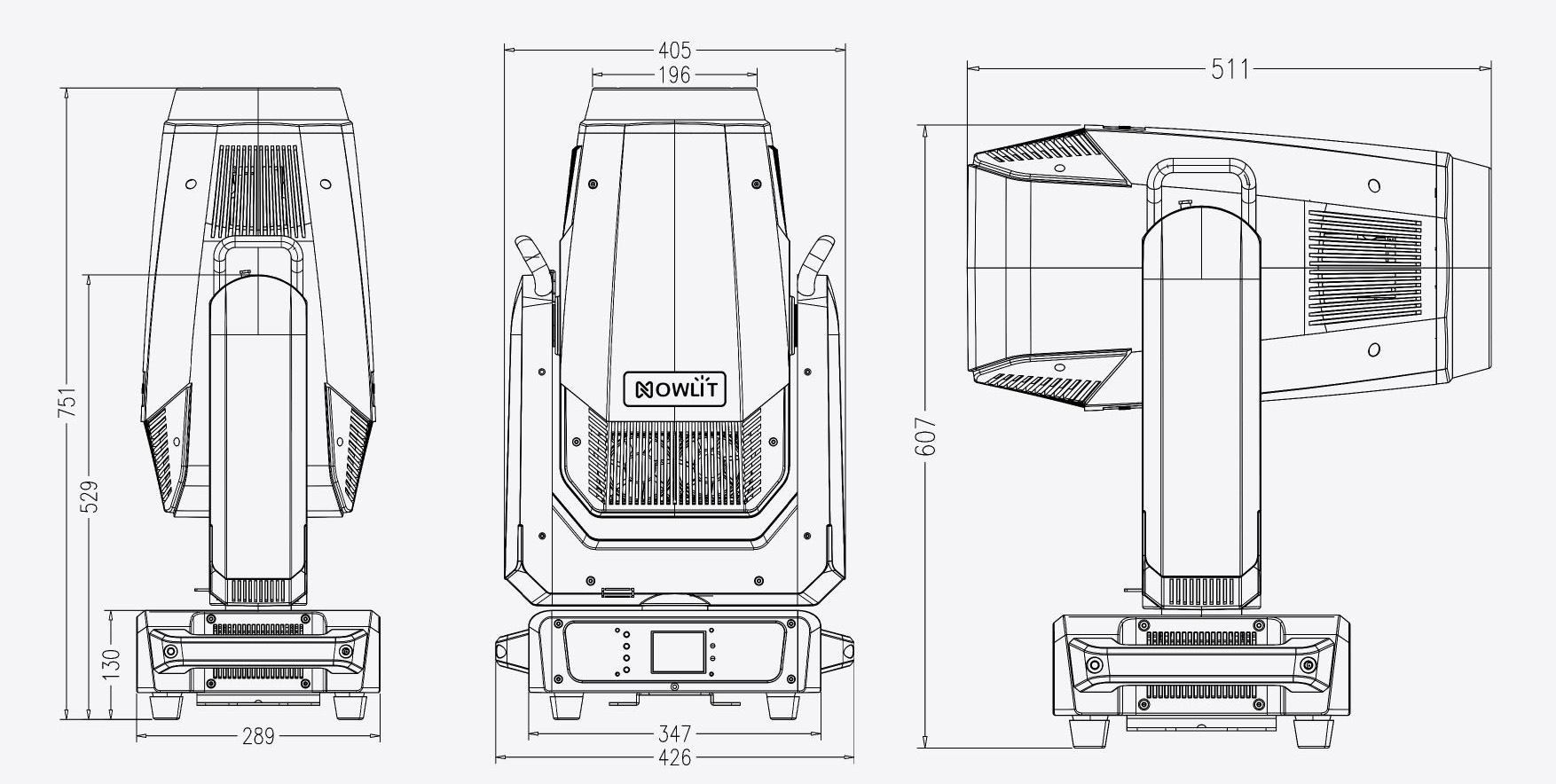

Dimensions

Effects

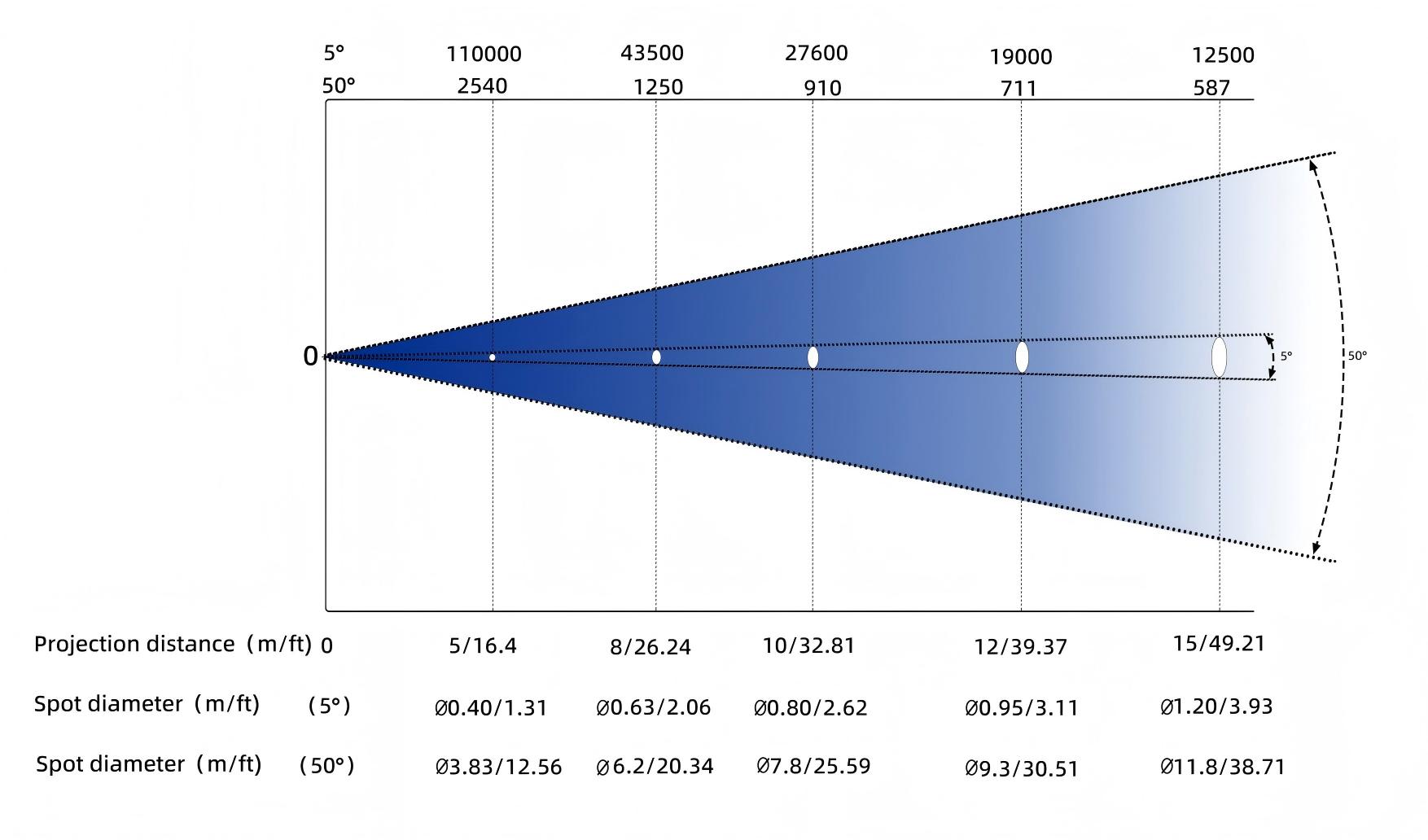

Photometrics
