Name: 19*40W LED RGBW 4in1 Zoom Moving Head Light WIth Strip
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

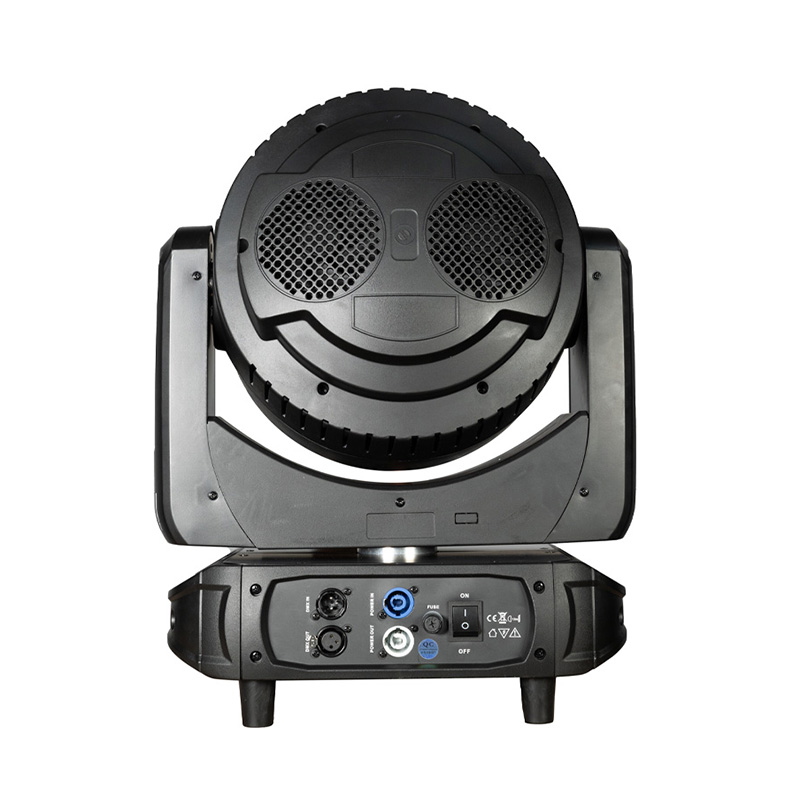

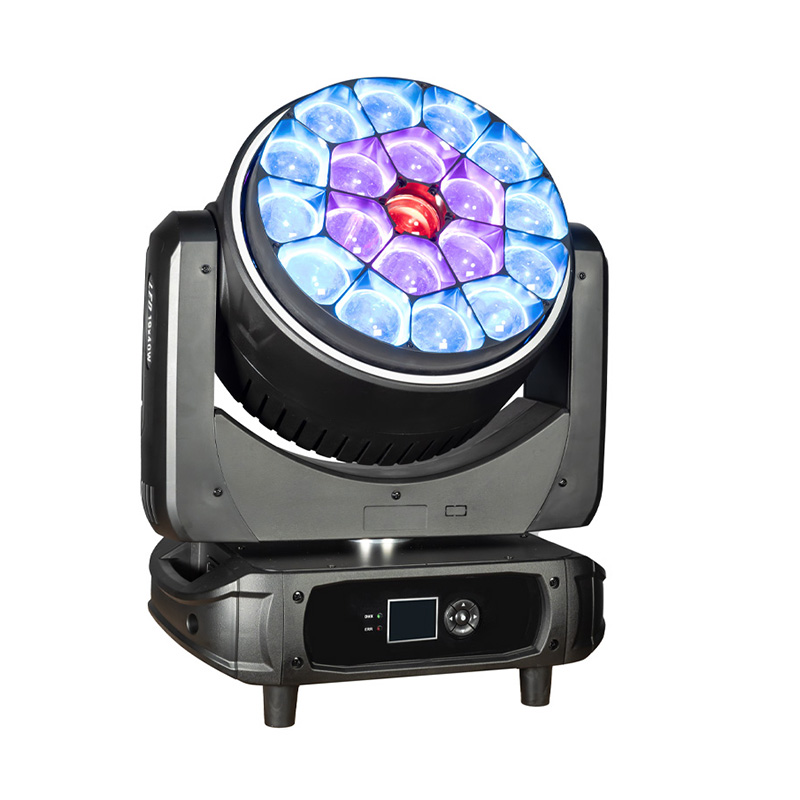

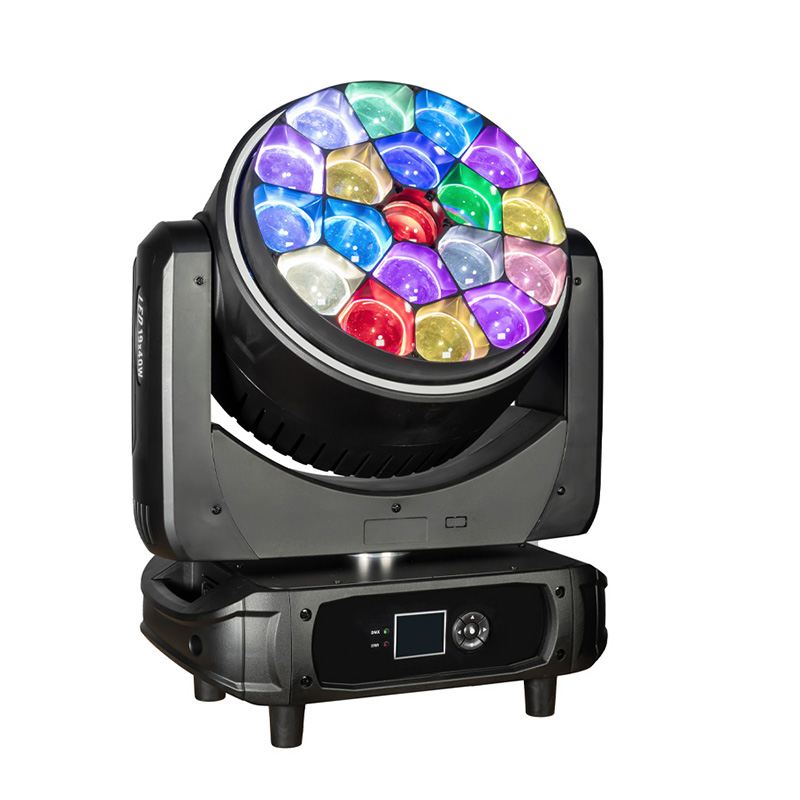

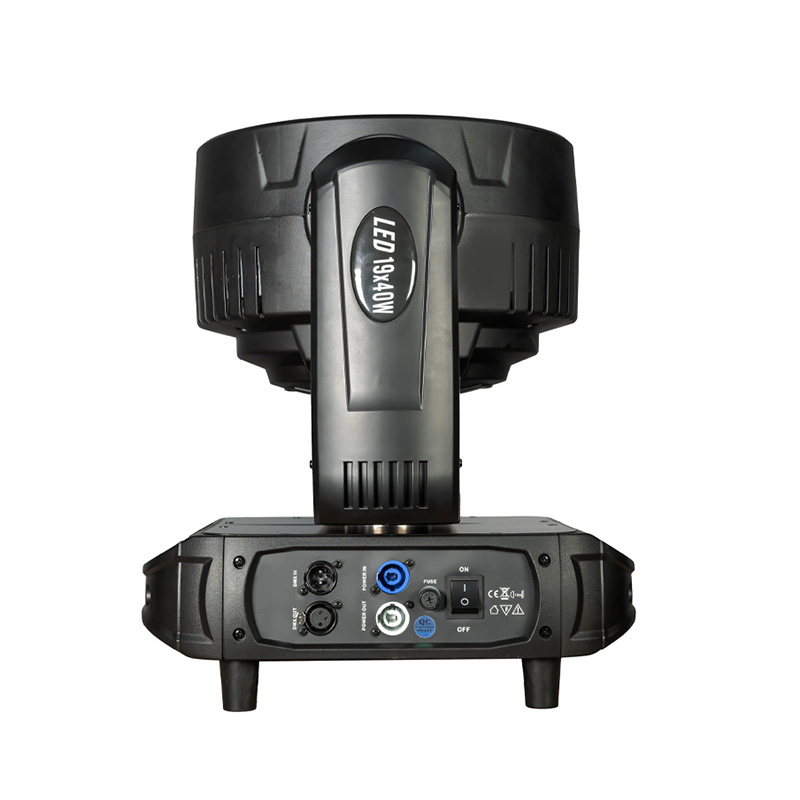

19*40W LED RGBW 4in1 Zoom Moving Head Light WIth Strip

19×40W RGBW 4in1 Moving Head Wash Light with Strip offers rich colors and dynamic effects, and a long lifespan.DMX focus, auto-focus, and 360° rotating lens.

Brand model :
QR-K15
Input voltage :
AC100–240V, 50/60Hz
Light source :
19 × 40W RGBW LED
Product size :
34*26*51CM（L*W*H)
Net weight :
17kg
Protection level :
IP20
Channel mode :
22(compact)/26/36/78CH, four channel modes

Inquiry Now

Function Description

19×40W RGBW 4in1 Moving Head Wash Light With Strip features 19×40W RGBW LED light sources,delivering powerful lighting effects and rich color performance.It supports 4°-60°adjustable beam angle,ensuring precise beam control, making it ideal for various scenarios such as stage performances,concerts,bars,and more.The light offers strong beam penetration and impressive visual impact.

QR-K15 Bee Eye Moving Head Light supports DMX linear focus and auto-focus functions,with 360°endless rotating optical lens, adding rich visual layers to any scene.The beehive light supports individual control of each LED,as well as single-ring independent control,enabling effects such as kaleidoscope,waist,strobe,and spotlight.These features enhance the variety and expressiveness of the lighting,catering to different performance styles and creative needs.

Equipped with an intelligent cooling system and temperature protection,the light ensures stable operation and extends the life of the LEDs.The auto-rotating screen and remote sleep mode enhance operational convenience and stability,making it the ideal choice for creating high-quality stage visuals.

Technical parameters

Light Source System

Light Source specification: 19 × 40W RGBW LED
Light source life: >20,000 hours

Optical System

Beam angle: 4–60°

Color System

Color: RGBW color mixing system with uniform mixing, flicker-free output, fast rainbow color effects
Color temperature control: Built-in CTO

Effect

Focus: DMX linear focus adjustment with automatic focus function
High-speed electronic strobe: 0.3–25 Hz/s, selectable synchronous, asynchronous, and random strobe modes
Dimming mode: Electronic 0–100% linear dimming
Zoom system: Linear motorized zoom
Lens rotation: 360° continuous optical lens rotation, variable kaleidoscope, “small waist” and other effects
Front halo LED strip: Individual pixel control with free chasing, flowing marquee, and color-changing
Single-ring control: Independent inner and outer ring color control
Single-pixel control: Individual LED control with independent color changes

Electrical & Interface

Rated power: 850W
Input voltage: AC100–240V, 50/60Hz
Signal interface: 3-pin or 5-pin XLR input/output

Control & Programming

Control Channels: 22(compact)/26/36/78CH, four channel modes
Protocol: Standard DMX512,RDM
Software Updates: Easily and quickly updated via DMX signal
Temperature Protection: Intelligent temperature protection to ensure LED lifespan
Cooling System: Uses a high-conductivity lightweight aluminum heat sink with fan speed intelligently monitored and adjusted based on the fixture's temperature
Screen Rotation Function: The system can automatically rotate the screen according to gravity direction, eliminating the need for manual rotation. The automatic rotation function can also be turned off
Sleep Mode: Advanced technology enables remote sleep function, automatically entering sleep mode when the fixture is disconnected from the signal, ensuring greater stability and reliability
RDM Remote Console: Built-in RDM remote console addressing and upgrade function

Pan & Tilt Movement

Pan/Tilt Movement: 540°/270°, with automatic reset and 16-bit fine positioning
High-precision optical encoder positioning system for both pan and tilt

Fixture Structure

Flame-retardant engineering plastic housing
Fan cooling system
Ingress protection rating: IP20 (optional rain cover available, protection up to IP44)
Operating temperature: -20°C to 45°C

Size & Weight

Product size: 34*26*51CM（L*W*H)
Net weight: 17kg
