Name: IP66 1000W LED BSW Profile Moving Head Light
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

IP66 1000W LED BSW Profile Moving Head Light

IP66 1000W LED BSWF 4in1 moving head integrates beam, wash, gobo,and profile.high CRI,Ideal for outdoor events, offering all‑weather reliability and versatile creative lighting.

Brand model :
QR-WF1000
Input voltage :
AC100V-240V, 50/60Hz
Light source :
880W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Color wheel :
5+1/CMY/CTO
Product size :
41*28*66cm
Net weight :
28kg
Protection level :
IP66

Inquiry Now

Function Description

IP66 1000W LED BSWF 4-in-1 Waterproof Moving Head Light integrates beam, wash, pattern, and frame functions into one unit, supporting one‑click switching between standard and high color‑rendering modes. With a 4°–50° linear high‑speed zoom, it delivers clear and uniform lighting effects whether for focused spotlighting or wide‑area illumination.

The fixture housing is made of lightweight yet robust die‑cast magnesium alloy, combined with an IP66 high‑level protection rating, ensuring all‑weather stable operation in harsh environments such as rain, wind, and dust. It features a rich array of built‑in effects including CMY color mixing, linear CTO color temperature correction, dual pattern wheels, dynamic effects, a prism system, independent framing shutters, frost diffusion, and strobe functions. The light also supports dual‑axis magnetic‑encoded positioning for precise horizontal and vertical movement.

Designed to balance portability and professional performance, it is particularly suitable for cultural tourism lighting projects, outdoor live performances, and similar applications. With its outstanding versatility and all‑weather reliability, this moving head light provides a solid foundation for creative lighting presentations.

Technical parameters

Light Source System

Light source specification: 880W LED module
Color temperature: 7487K
Light source life: 20000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 4-50 degrees
Lens diameter：138mm
Lux：16100Lux@10m

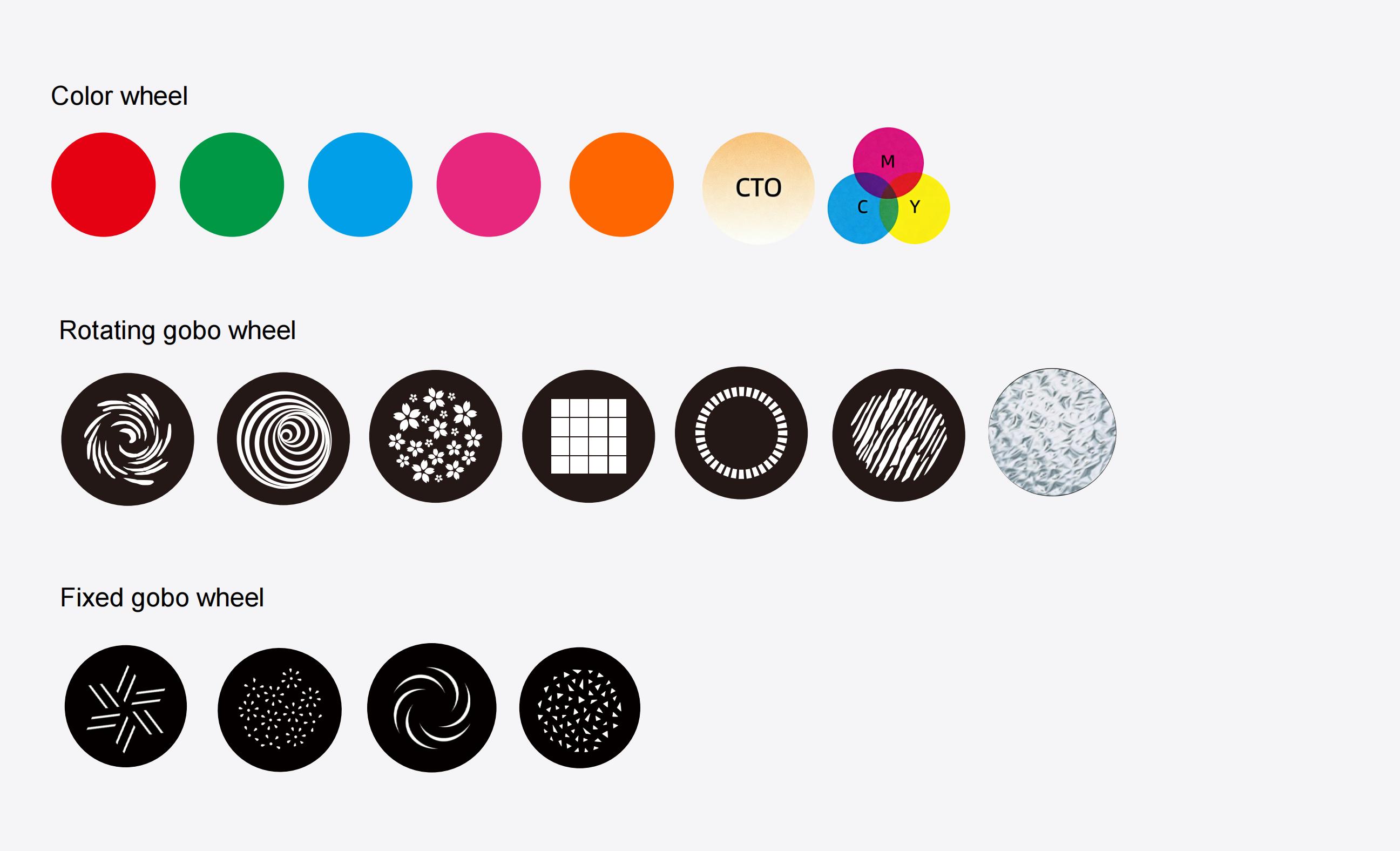

Color System

Independent CMY color mixing system
Linear CTO color temperature correction (7000-2600K)
1 Independent Color Wheel with 5 Colors, featuring step and linear color-changing modes, and an adjustable-speed rainbow water effect

Gobo system

Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 30mm±0.2mm, inner diameter 16mm, thickness 1.1mm
Fixed gobo wheel: 4 fixed gobos+white, which can change speed and shake

Cutting System

4 independent cutting blades, each can be controlled individually to produce geometric shapes of different sizes and forms, and capable of 90°rotation

Effect

Dynamic effect wheel: super cool simulation of dynamic and moving flames, gurgling water and other dynamic effects
Prism: 3 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% frost, natural and soft light spot
Electric aperture: 6-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt Movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical and Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 1000W
Signal interface: Optional 3-core/5-core XLR signal input/output

Control & Programming

Channel mode: 38/41CH
Control protocol: DMX512/RDM protocol
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy-Saving Sleep Mode: automatically enters sleep state when the signal is disconnected, ensuring safety and energy efficiency
Software upgrade: can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

Product appearance: adopts high-end casing made of international standard die-cast aluminum and aviation-grade die-cast magnesium alloy
Working environment: -20 ° C to 40 ° C
Protection level: IP66

Size & Weight

Product size: 41*28*66cm (L*W*H)
Net weight: 28kg
