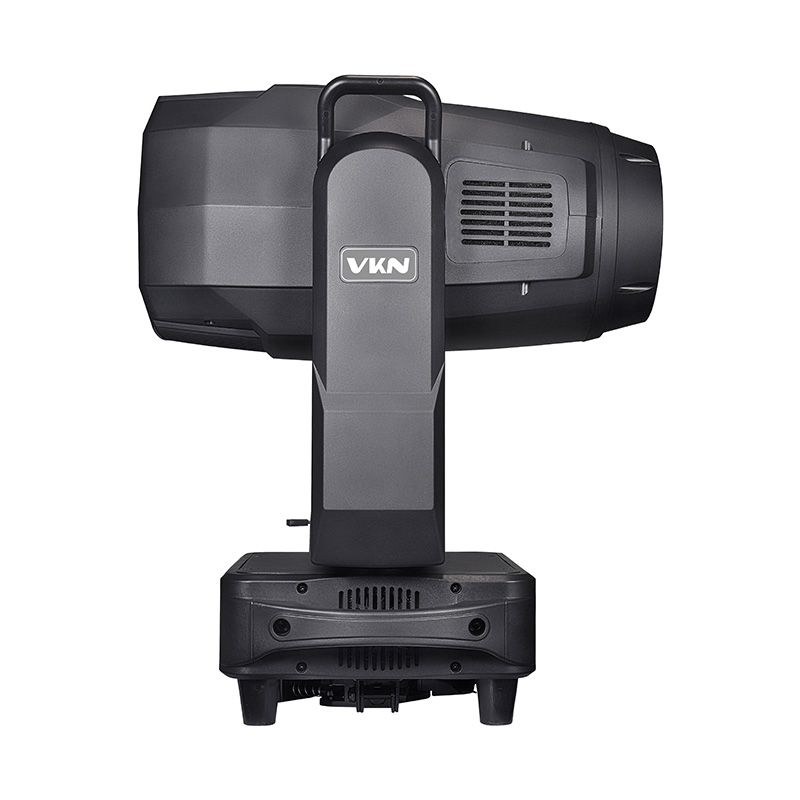

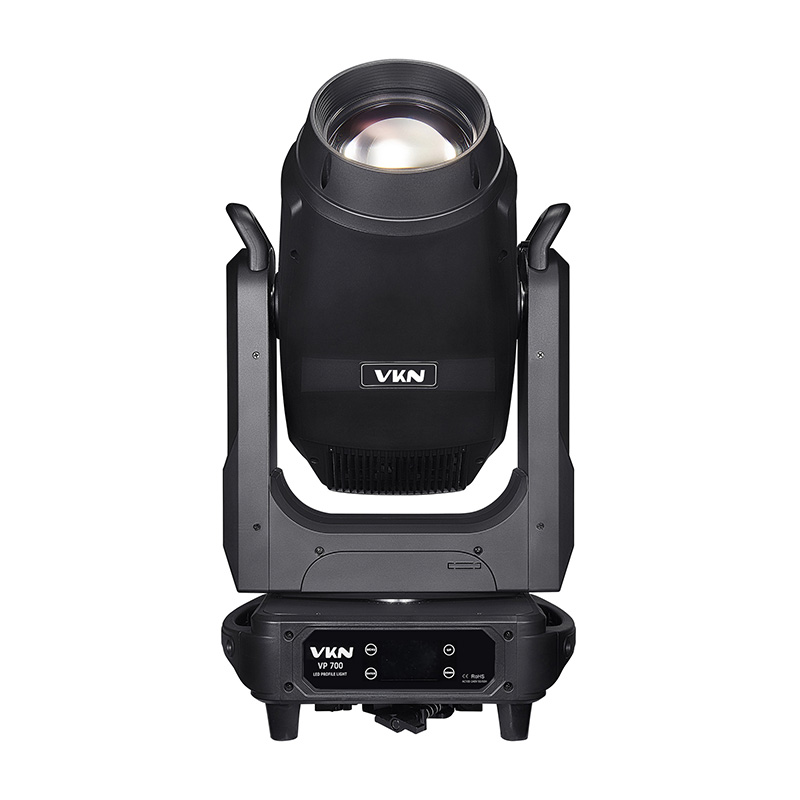

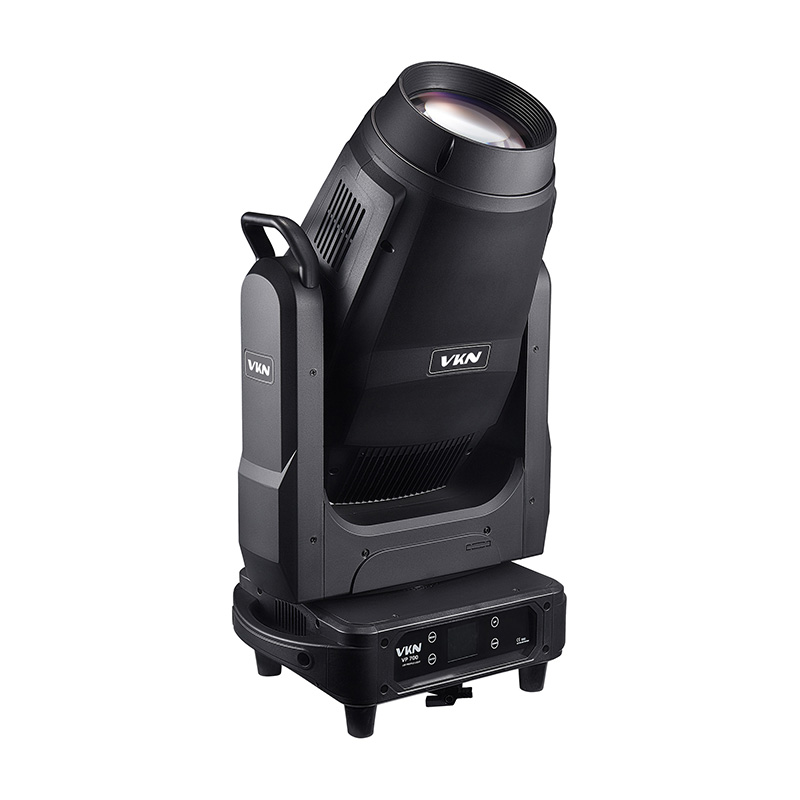

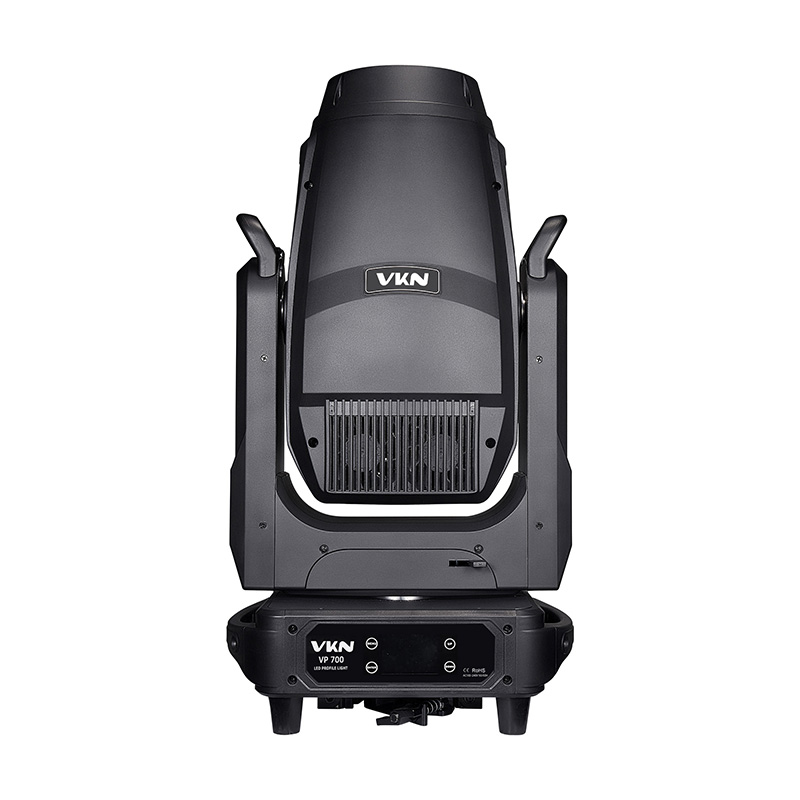

VP700 700W LED BSW Profile Moving Head Light

Light Source System

• Light source: 600W LED module
• Color temperature: 6500K
• LED lifetime: >20,000 hours
• CRI: Standard mode Ra > 70 / High CRI mode Ra > 90 (switchable)

Optical System

• Zoom range: 3.5°–45° linear high-speed zoom
• Output lens diameter: 136 mm
• Illuminance: 143,000 Lux @ 5m

Color System

• CMY infinite color mixing system
• Linear CTO color temperature correction (6500K–2600K)
• Color wheel: 1 independent color wheel 7 colors + open white
• Stepped and linear color change modes, adjustable rainbow effect

Gobo system

• Rotating gobo wheel: 7 interchangeable rotating glass gobos, each with independent bi-directional rotation
• Fixed gobo wheel: 11 metal gobos + open, with variable-speed shake effect

Cutting System

• 4 independently controllable framing blades, allowing precise beam shaping and geometric pattern creation, ±120° rotation

Effect

• Animation wheel: Independent animation wheel with dynamic flame, flowing water, and other motion effects simulation
• Prism system: 1 × 4-facet prism and 1 × 4-facet linear prism, independently bi-directional rotation
• Dimmer: 0–100% smooth linear dimming
• Strobe: Electronic strobe with variable speed effects
• Frost filter: 1 independent frost filter for smooth and soft beam output
• Motorized iris: 5–100% fast linear adjustment

Pan &Tilt

• Pan 540°, Tilt 270°, auto return, 32-bit fine adjustment, with magnetic encoder system for precise positioning

Electrical & Interface

• Input voltage: AC100V–240V, 50/60Hz
• Rated power: 810W
• Signal interface: 3-pin & 5-pin XLR signal input/output
• Fuse: 250V 10A

Control & Programming

• Control channels: 39/41CH
• Control protocol: DMX512 / RDM, optional NFC and Art-Net
• Display: 2.4-inch touchscreen display with Chinese & English bilingual operating system, reversible 180° display
• Energy saving sleep mode: Automatically enters sleep mode when signal is disconnected
• Software upgrade: Firmware upgrade via DMX signal cable
• Cooling system: High-efficiency copper heat pipe cooling system, intelligent variable-speed fan, built-in temperature sensor with automatic thermal regulation

Fixture Structure

• Hosing material: Flame-retardant nylon, high-temperature resistant
• Mounting: Integrated folding omega clamp design
• Operating temperature: -20°C to 45°C
• Protection rating: IP20

Size & Weight

• Product dimensions: 38*26.9*68.4cm (L*W*H)
• Net weight: 27.5 kg
