420W Waterproof Bulb BSW Moving Head

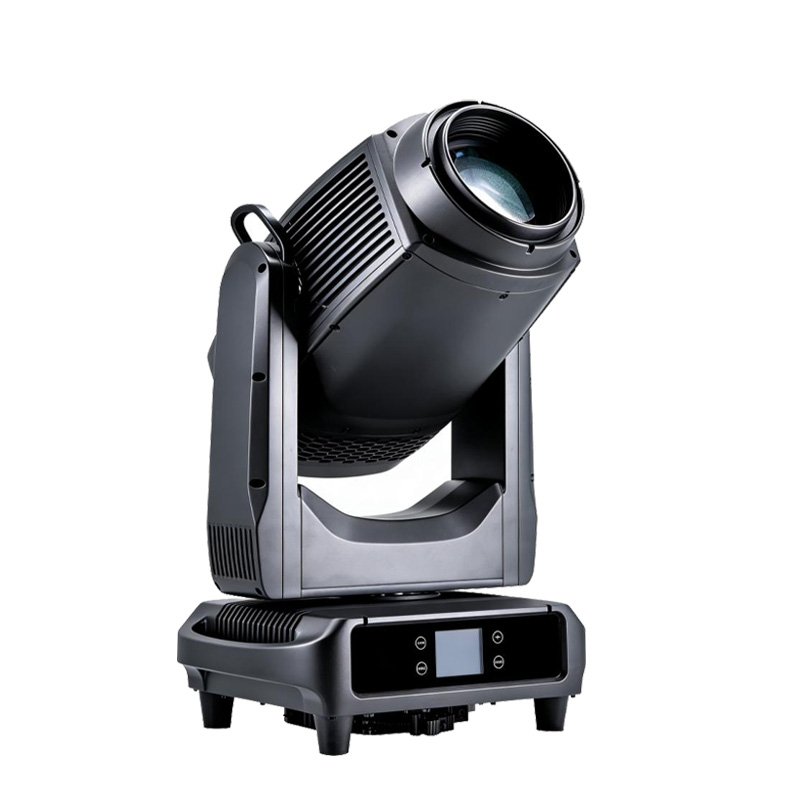

QR-BS420 IP66 Professional Stage Lighting Fixture

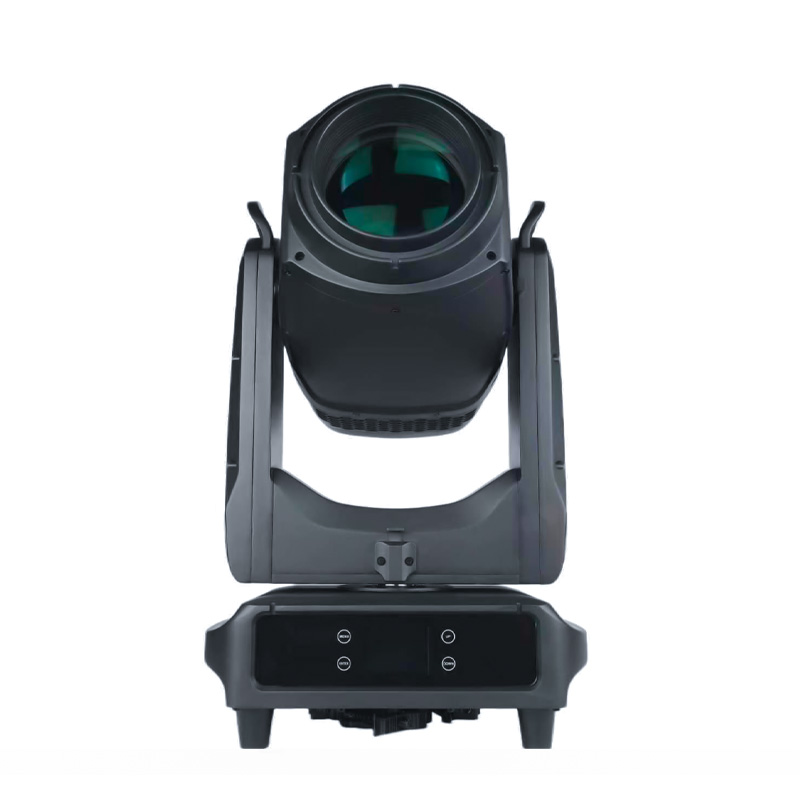

QR-BS420 IP66 Waterproof BSW Moving Head Front View

420W Waterproof Bulb BSW Moving Head

QR-BS420 IP66 BSW Moving Head — CMY Color Mixing, CTO Control, Dual Prisms, Dual Gobos & Dual Color Wheels for Stunning Stage Effects.

Markenmodell :
QR-BS420 IP66
Eingangsspannung :
AC 100–240V, 50/60Hz
Lichtquelle :
PHILIPS MSD Silver 420W/2 LL
Farbkreis :
2 Color Wheels, 6 Colors Each
Kanalmodus :
28 ch
Schutzstufe :
IP66
Produktgröße :
70.9 × 38.6 × 29 cm
Nettogewicht :
27 kg

JETZT ANFRAGEN

Function Description

QR-BS420 IP66 is a waterproof BSW moving head powered by a PHILIPS MSD Silver 420W/2 LL lamp,delivering high brightness and reliable performance in all weather conditions.Its linear CMY color mixing and CTO adjustment ensure smooth color transitions and precise color temperature control.Featuring dual color wheels,7 interchangeable glass gobos,14 metal gobos,and 2 prisms,it creates rich color combinations and dynamic projection effects for outdoor concerts, touring, and professional stage productions.

Technical parameters

Light Source System

Light source: PHILIPS MSD Silver 420W/2 LL
Color temperature: 7800 ± 500K
Lamp life: 3,500 hours

Optical System

Beam angle: 2°–31°
Spot angle: 3.5°–50°
Front lens diameter: 140 mm

Color System

CMY color mixing: Linear CMY color mixing system
CTO: Linear CTO color temperature adjustment, 3200K–6700K
Color wheel 1: 6 colors, with step and linear color changing modes, plus variable-speed rainbow flow effect
Color wheel 2: 6 colors, with step and linear color changing modes, plus variable-speed rainbow flow effect
Half-color effect: Available

Gobo System

Rotating gobo wheel: 7 interchangeable glass gobos, each independently rotatable in both directions
Fixed gobo wheel: 14 metal gobos + open, with variable-speed gobo shake effect

Effect

Prism: 2 prisms (6-facet prism and 8-facet prism), bidirectional variable-speed rotation, with overlapping effects
Dimming: 0–100% linear dimming
Strobe: Fast strobe effect at 1–20 Hz, with pulse, synchronized and asynchronous strobe effects
Frost: 1 independent frost filter, providing frost and color wash effects

Pan&Tilt

Pan: 540°
Tilt: 270°
Automatic position reset and 16-bit fine positioning

Electrical & Interface

Rated power: 600W
Input voltage: AC 100–240V, 50/60Hz
Signal connectors: 3-pin/5-pin waterproof signal connectors & Seetronic waterproof 3-pin XLR connectors

Control & Programming

DMX channels: 28 channels
Control protocols: DMX512, Master/Slave, Auto Run, RDM
Display: LCD display with 4 touch buttons
Sleep mode: Automatically enters sleep mode when the signal is disconnected for energy saving and safety
Software update: Software can be updated via DMX signal cable
Cooling fan: Silent variable-speed fan

Fixture Structure

Housing material: Premium magnesium alloy housing
Operating temperature: -10°C to 40°C
IP rating: IP66

Size & Weight

Product dimensions: 70.9 × 38.6 × 29 cm
Net weight: 27 kg

Effects

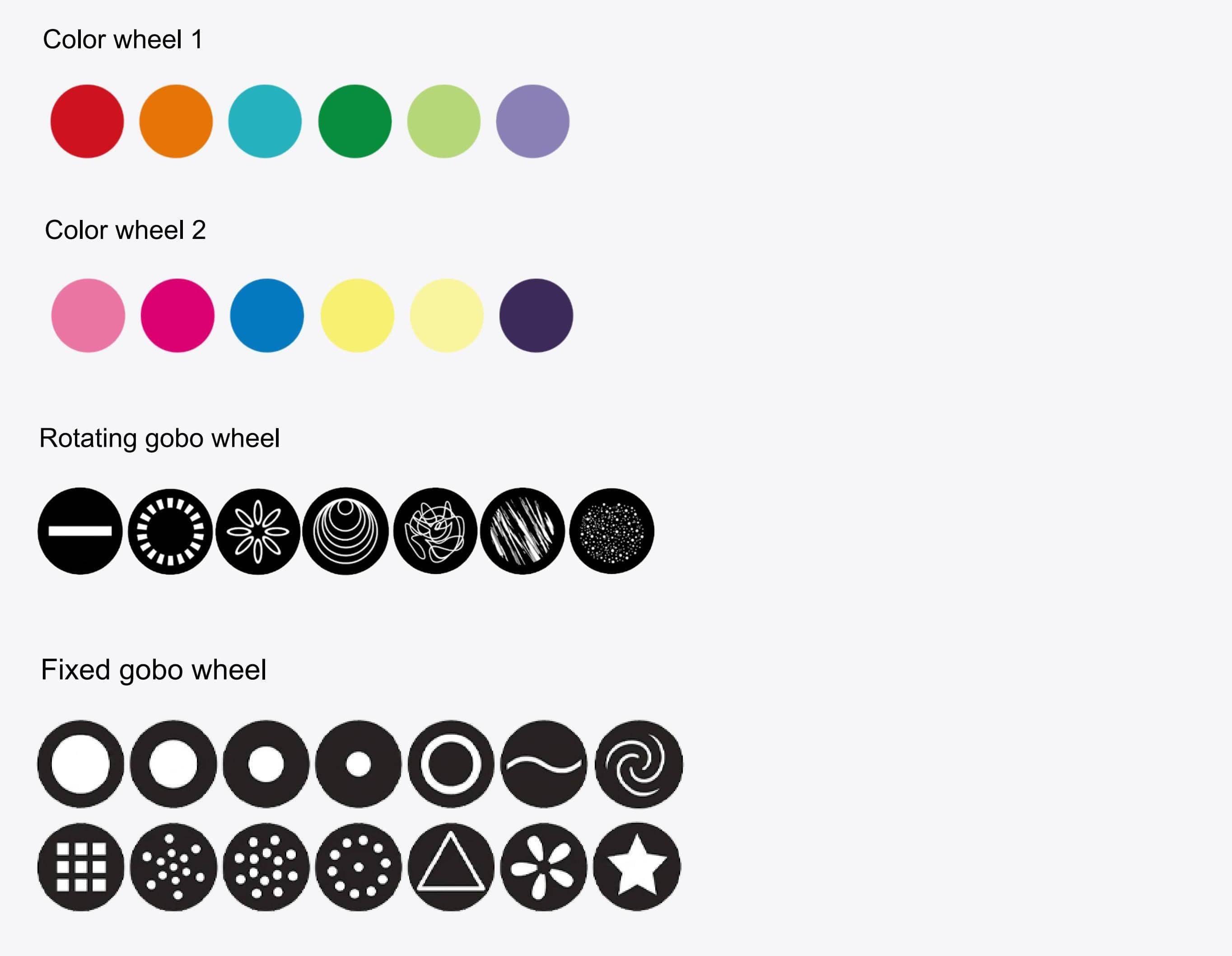

QR-BS420ip66 Effects

FAQ

Q1: Is the QR-BS420 IP66 suitable for outdoor use?

Yes. With an IP66-rated housing, the QR-BS420 is designed for outdoor stage lighting in demanding weather conditions.

Q2: What light source does the QR-BS420 IP66 use?

It uses a PHILIPS MSD Silver 420W/2 LL lamp, delivering high brightness for professional stage applications.

Q3: What color and projection effects does the QR-BS420 IP66 offer?

It features linear CMY color mixing, linear CTO adjustment, dual color wheels, 7 interchangeable glass gobos, 14 metal gobos, and 2 prisms for versatile stage effects.

Q4: What applications is the QR-BS420 IP66 suitable for?

It is ideal for outdoor concerts, touring productions, festivals, and other professional stage lighting applications.
